AramidPE Military Nij Iiia Certified Fast Bulletproof Helmet Ballistic Helmet

Short Description:

Material: high molecular weight polyethylene material, aramid composite material
Suitable for head circumference: L(56-59cm)1.4KG±0.5KG;L(60-62cm)1.5KG±0.5KG
Built-in: anti-vibration system, head circumference adjustment system, cushioning system

Product Detail

Product Tags


The bulletproof helmet consists of a helmet shell, a chin strap and a helmet top suspension system. The helmet shell is laminated and formed by high-performance polyethylene dipped woven fabric.
The shell is made of high-strength and high-modulus polyethylene fiber material. Its weight is light. It has good anti-ballistic properties. It is safe and reliable, comfortable to wear. And it has functions such as waterproof, moisture-proof, fire-proof, and UV-proof. This bulletproof helmet is suitable for public security police, armed police soldiers, and anti-terrorist forces to perform tasks such as combating criminals with guns.

Product Name Fast bulletproof helmet
Ballistic Resistance NIJ IIIA against 9mm and .44Magnum
Components Ballistic-resistant Kevlar shell
Four-point adjustable chinstrap retention system
Pad adjustable suspension system.
Weights 1.4KGS
Material PE/Aramid
Size M, L, XL
Color Available in black, tan or O.D. Green and customized.
Other Features Minimum static load test of 150 lbs.
Minimum dynamic load test of 25 fps
Impact mitigation, less than 150 gs force transmitted to the head at 10 fps.
Compatible with the use of all major gas masks worn under the helmet.
Fragmentation Resistance.
Ballistic performance within the following temperature range: -40°F to 160°F.
Installation of audio communication system inside the ear.
Customer Options: Dismountable NIJ IIIA Bullet proof visor.
Rail system.
Frontal shroud


Ballistic protection requirements for the helmet

1.The helmet has a level of protection IIIA in accordance with standards NIJ-STD-0106.01 and NIJ-STD-0108.01 or equivalent standards.
2.To provide 100% protection against hits and rebounds of bullets with soft heart, pistols and revolver cartridges as follows:
3.According to standard NIJ-STD-0106.01 or equivalent; 9mm para FMJ, bullet weight 8.0 ± 0.1 gram, test tube length 10 to 12 cm, initial bullet velocity 358 ± 15 m / sec. According to standard NIJ-STD-0108.01 or equivalent; 44 Magnum Lead SWC Gas Checked, bullet weight 15.55 ± 0.1 gram, test tube length 14 to 16 cm, initial bullet velocity 426 ± 15 m / s .;
4.Provide shield protection in accordance with standards PS - 1118, MIL - STD - 662F or equivalent. Bulk weighing 1.1016 grams (17 grams FSP) at speed V50 = 670 m / sec.

Product Advantages

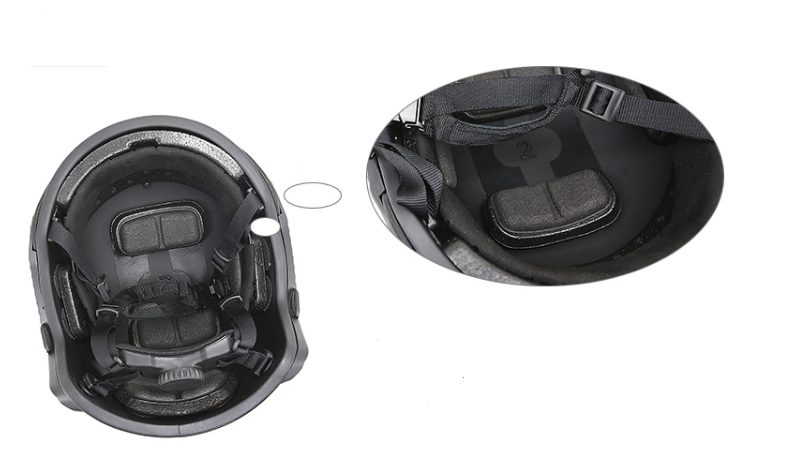

Thick padded design can be effective slow down the impact on the head.
kghjf (1)

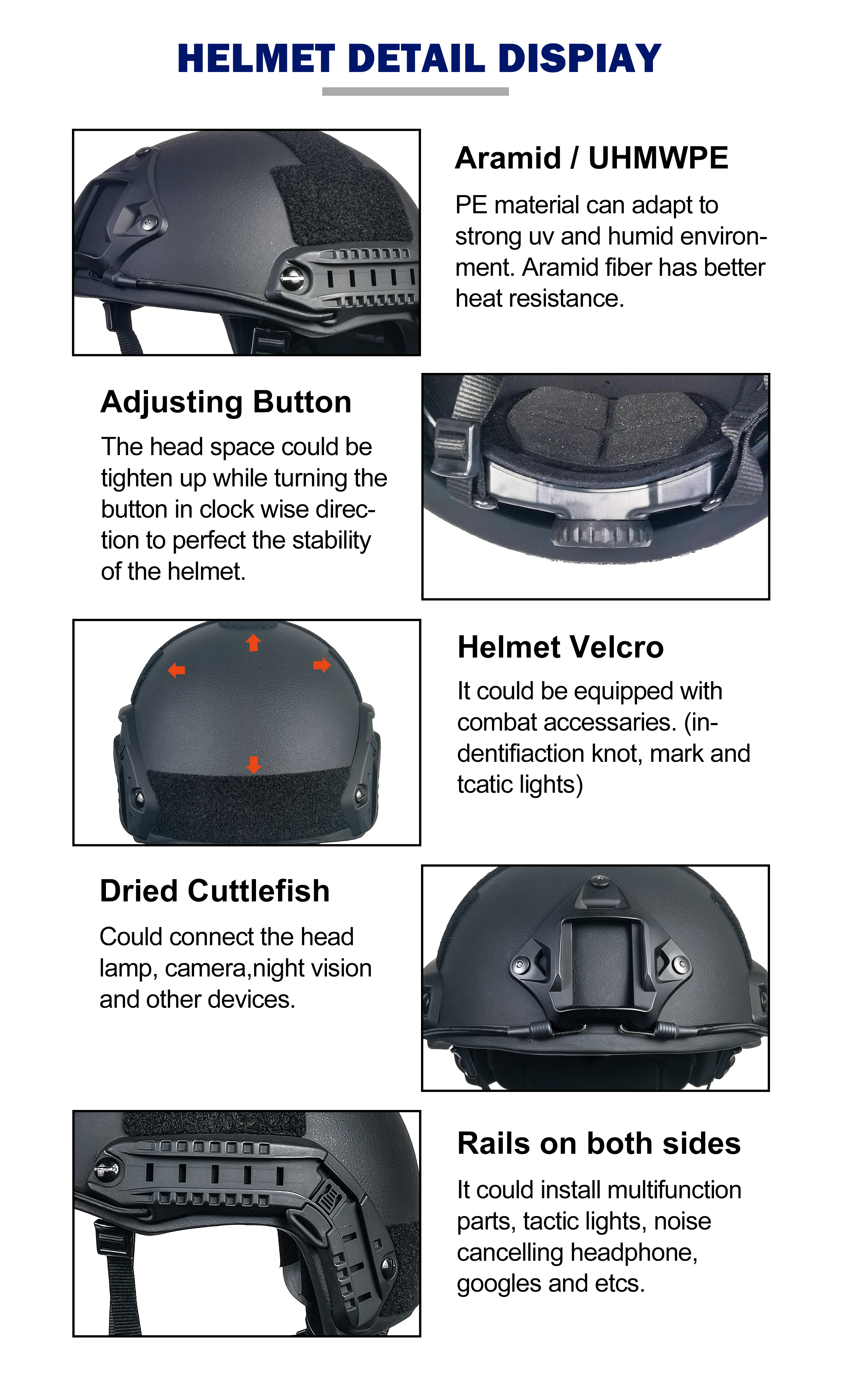

Tactical design:
Multifunctional guide rail design on both sides, fixed by metal spiral nails, functional accessories can be installed.
Dried cuttlefish multifunctional base design which can be connected to accessories such as headlights and night vision devices.

Humanized design:
OPS adjustable suspension system to make wearing more stable

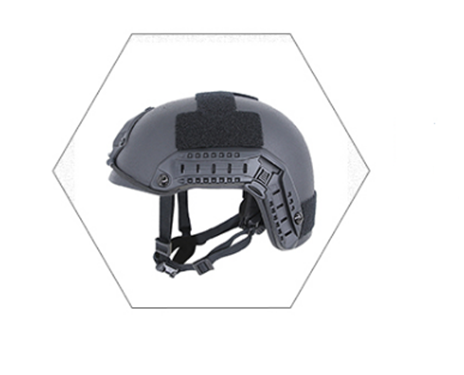

kghjf (2)

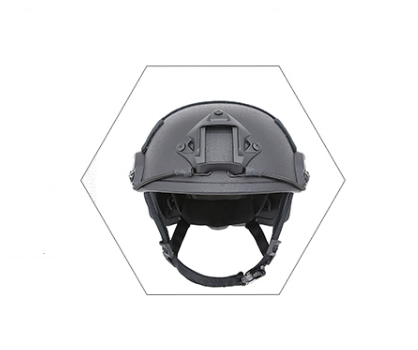

kghjf (3)

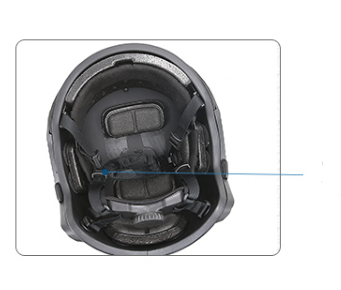

kghjf (4)
